Eicher Pro X Caravan — Off-Grid Power, Interior Design & What's Possible (2026)

Here's the simple truth that every caravan builder knows: if it can be done on the Mahindra Veero, it can be done on the Eicher Pro X — PLUS more. The Pro X gives you a bigger canvas (11ft vs 10ft body), a wider frame (6ft native width), more carrying capacity (2T payload), and bonus under-chassis space where the DPF tank would normally sit. Every single system that works on the Veero platform works here — with room to spare.

This article breaks down exactly what's possible when you build a full off-grid caravan on the Eicher Pro X platform. We'll cover the power system, water management, interior layout, and the specific advantages that the Pro X's extra dimensions and payload bring to each system. Whether you're a first-time caravan builder or upgrading from a Veero build, this is your complete technical reference.

Why the Pro X Allows MORE Than the Veero

Before diving into specific systems, understand why the Eicher Pro X isn't just "as good as" the Veero for a caravan build — it's genuinely better as a platform. Four structural advantages compound to give you significantly more capability:

That last point is often overlooked. On the Veero, there's a DPF system and urea tank mounted underneath the chassis. That physical space is simply unavailable for anything else. On the Pro X, that space is empty — free real estate for water tanks, grey water storage, or an additional diesel tank for a generator. It's like getting free storage without any penalty.

Power System — 10kW Lithium Off-Grid Setup

The same 10kW lithium battery system that powers Veero caravans fits on the Pro X with room to spare. In fact, the extra payload capacity means you could theoretically go to 12-15kW if your travel needs demand it (full-time van lifers running AC 24/7, for example).

Battery Bank

A 10kW battery bank provides approximately 2-3 days of normal usage without any charging source — running lights, fridge, fans, charging devices, and occasional induction cooking. With solar supplementing during the day, you can theoretically stay off-grid indefinitely in sunny conditions.

Solar Panel Array

The Pro X's 11ft roof provides more mounting area than the Veero's 10ft roof. This allows for potentially more solar capacity:

• Minimum setup: 550W (4 × 140W flexible panels) — sufficient for maintaining battery in sunny weather
• Optimal setup: 880W (6-7 × 140W panels) — leveraging the extra roof space on Pro X
• Panel type: Flexible monocrystalline — lightweight, follows roof contour
• MPPT charge controller: 40-60A rated for efficient conversion

In peak Indian summer, 880W of solar panels can generate 4-5 kWh per day — enough to fully replenish a 10kW battery bank every 2-3 days even without driving.

DC-to-DC Converter Charging

While driving, a DC-to-DC converter draws power from the vehicle's alternator to charge the house battery bank. The Eicher Pro X's larger alternator (compared to the Veero's 1500cc engine alternator) can support higher charging rates:

• Charges house batteries while driving — typically 30-50A input
• 4-5 hours of driving can replenish 3-4 kWh
• ECO/ECO Plus modes help preserve the vehicle battery during charging
• Automatic cutoff prevents vehicle battery drain

Generator Backup

For extended cloudy/rainy periods or heavy AC usage, a 2.8 kVA portable generator provides backup power. The Pro X's extra payload makes carrying a generator less of a weight concern — a Honda EU28i or equivalent weighs approximately 30 kg.

Water System — 180-200L Fresh Water Capacity

Here's where the Pro X's "no DPF" advantage really shines for water management. On the Veero, the DPF/urea system occupies chassis space that could be used for water tanks. On the Pro X, that space is free — allowing for significantly larger water capacity:

With 200L of fresh water, a couple can comfortably stay off-grid for 5-7 days with normal usage (cooking, drinking, quick showers, dishwashing). The Veero typically maxes out at 180L due to space constraints — the Pro X pushes this to 200L or potentially more.

The QRV (Quick Release Valve) connection allows rapid tank filling at RV parks, petrol stations, or any water source with a hose. The city water connection bypasses the tank entirely when you're parked at a campsite with water supply — saving your tank water for actual off-grid days.

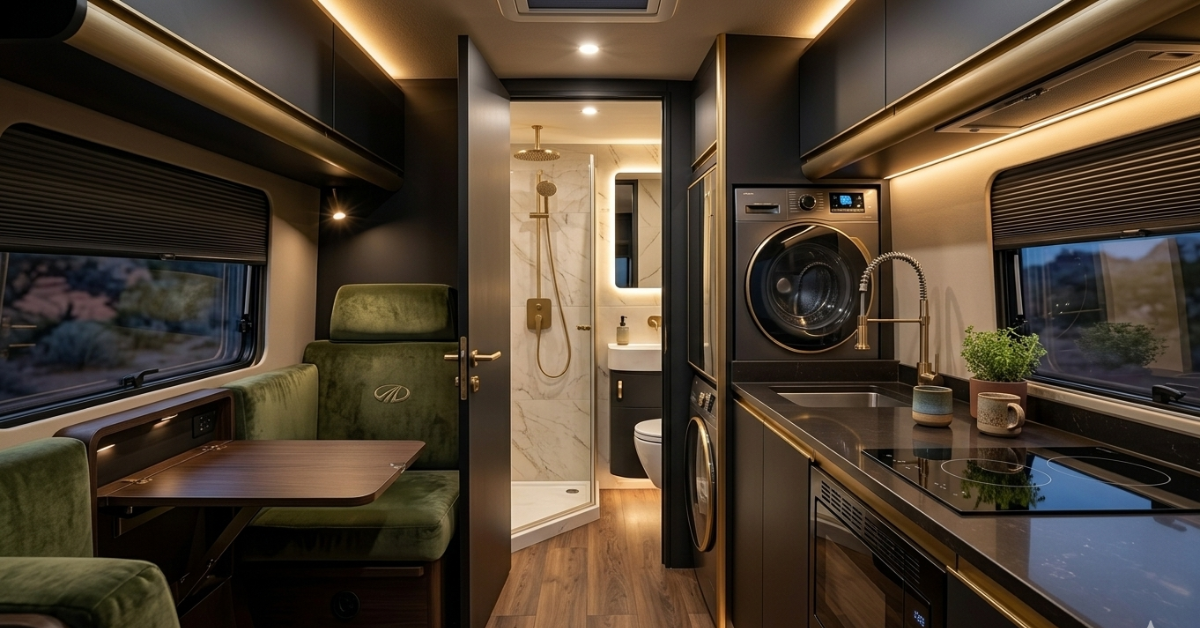

Interior Layout — 66 Square Feet of Living Space

The Eicher Pro X's 11ft × 6ft body gives you 66 square feet of floor space — 10% more than the Veero's 60 sq ft. That extra 6 square feet is the difference between "livable" and "comfortable." Here's how a typical luxury interior layout utilizes this space:

Kitchen Zone

• L-shaped kitchen counter — maximizes work surface area
• 50-60L DC compressor fridge + separate ice box for beverages
• Induction cooktop — powered by house battery, no LPG needed indoors
• Stainless steel sink with pressurized hot/cold water
• Overhead storage cabinets — marine-grade latches prevent opening during transit
• Dedicated spice rack & utensil drawer — the extra width allows proper storage

Bathroom Zone

• Marine-grade cassette toilet (WC) — removable waste cartridge for easy disposal
• Hot water shower — gas or electric instant heater
• Ventilation fan — prevents moisture buildup
• Fold-down sink — space-saving design
• Waterproof FRP walls — easy cleaning, no mold growth

Sleeping Zone

• Cantilever bed above cabin — extends over the driver's cabin, accessed by ladder. Fits 2 adults comfortably
• Sofa-cum-bed in main area — converts from seating to sleeping in seconds. 4ft × 6ft when deployed
• Total sleeping capacity: 4-5 persons (2 above, 2-3 below)

Entertainment & Comfort

• Smart Android TV — wall-mounted, runs on house battery
• IFB washing machine — the Pro X's 2T payload makes carrying a washing machine feasible without weight anxiety
• Bluetooth speaker system — integrated ceiling speakers
• LED ambient lighting — warm white for living, bright white for cooking
• USB charging ports — distributed throughout all zones

The Pass-Through Challenge & Solution

One significant challenge with the Eicher Pro X for caravan builds is the non-reclining seats. In a pass-through design (where you walk directly from the cabin into the caravan body), the seats need to fold or recline to create a walkway. The Pro X's fixed seats block this pathway.

This is a minor inconvenience, not a deal-breaker. A seat swap takes a few hours and costs less than a single DPF service on the Veero. Once done, you have full pass-through capability with all the structural advantages of the Pro X platform intact.

Complete Power System Architecture

The beauty of this system is triple redundancy — solar charges during the day, the vehicle alternator charges while driving, and the generator handles emergencies or extended cloud cover. In practice, most users never need the generator — solar + driving covers everything for normal usage patterns.

Space Utilization — Pro X vs Veero

Frequently Asked Questions
